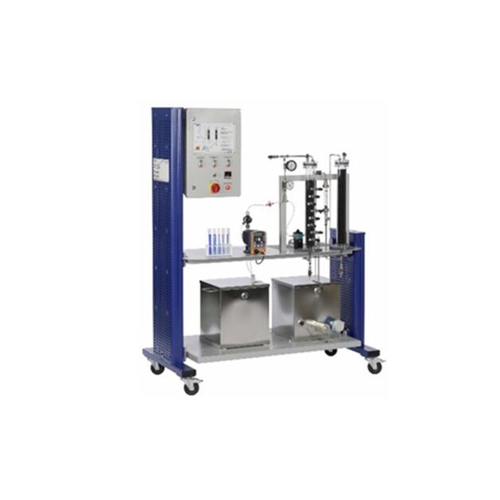

MR-CE 583 Adsorption Vocational Training Equipment Heat Transfer Demo Equipment
• 2 adsorbers with activated carbon filling o adsorber with 8 sampling points o safety adsorber for closed water circuit o continuous process •metering pump for centralized adsorbate solution o pump for recirculating the treated water o water temperature control o digital temperature indication o flow rate adjustable • change of adsorbate concentration and contact time Technical data Adsorber and safety adsorber • inside diameter: each 60mm • height: each 600mm • capacity: each 1700cm3 Tanks • treated water: 45L • adsorbate solution: 45L Circulation pump • max. flow rate: 180L/h • max. head: 10m Metering pump • max. flow rate: 2,1L/h • max. head: 160m Heater • max. power: 500W Measuring ranges • flow rate: 0...60L/h • temperature: 0...60°C • pressure: 0...2,5bar 230V, 50Hz, 1 phase 230V, 60Hz, 1 phase 120V, 60Hz, 1 phase UL/CSA optional Dimensions and weight LxWxH: 1500x790x1900mm Weight: approx. 180kg
