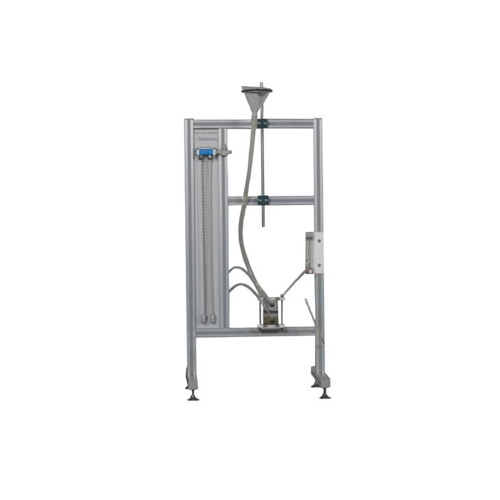

MR-CE 116 Cake and depth filtration Educational Equipment Hydrodynamics Laboratory equipment Description With CE 116 the processes in depth filtration and cake filtration can be observed and investigated. The suspension (water and diatomite as the solid) flows from the hopper into the top of the filter element, where the solids are separated off. The filtrate flows through a flow meter into the drain. The filter element has a porous filter medium at the bottom. In cake filtration, the filter medium provides the foundation for build-up of the filter cake. In depth filtration, the filter medium supports the bulk solids (filter medium layer; gravel). Twin tube manometers measure the pressure loss over the filter element. To register the filtrate quantity, the balance CE 116.01 is recommended. Technical details Specification fundamentals of cake and depth filtration filter element with sintered filter medium on its bottom to capture the particles pressure loss measurement with twin tube manometers height-adjustable filler hopper made of DURAN glass flow meter with needle valve for adjustment Technical data Filter element filter chamber height: 85mm Ø inner: approx. 37mm cross-sectional area: approx. 11cm2 tube material: DURAN glass Filter medium, sintered filter SIKA 100 pore size: 100µm thickness: 2mm material: sintered metal Measuring ranges flow rate: 40…360mL/min pressure: 2x 0…500mmWC temperature: -10…100°C measuring cup 1x 1000mL, graduation: 10mL 1x 100mL, graduation: 2mL
