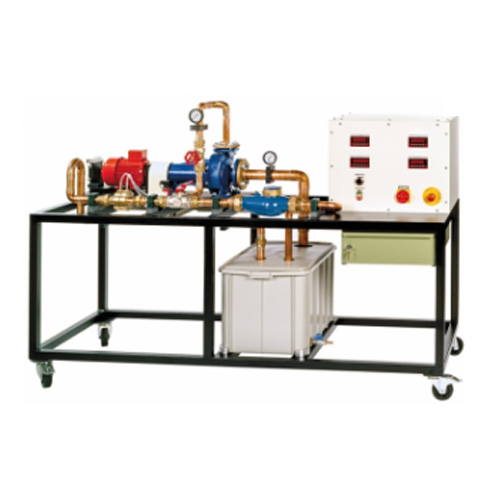

MR-HM305 Centrifugal pump Teaching Equipment Hydraulic Bench
I. Description
Centrifugal pumps are turbomachines that are used for conveying fluids. In centrifugal pumps, the head depends on the flow rate. This dependency is understood to be the operating behaviour of the pump and is represented in the characteristic diagram of the pump.
The trainer SR-HM305 is intended for experiments on the fundamental behaviour of a hydraulic circuit. SR-HM305 is suitable for both training in vocational colleges and for laboratory experiments in higher education.
The equipment of the trainer includes a closed water circuit and a powerful, standard centrifugal pump. Standard pumps are built according to industrial standards. The standard defines rating schemes and key dimensions so that standard pumps from different manufacturers can be exchanged without replacing the piping and ground plate.

The centrifugal pump is powered by a three-phase motor. The speed can be adjusted to the desired value with the frequency converter. An inductive, non-contact position encoder on the engine shaft records the speed. The drive motor is mounted in a pendulum bearing such that the drive torque can be measured with a force sensor and the mechanical drive power can be determined.
Manometers display the pressure on the pump’s inlet and outlet. The flow rate is measured with an electromagnetic flow rate sensor. The flow rate can also be determined by means of a differential pressure measurement on an orifice plate flow meter.
The speed, torque, and electrical power consumption of the pump and the flow rate are shown on a digital display on the switch cabinet.

II. Specification
examination of a standard centrifugal pump
closed water circuit
three-phase motor to power the pump with variable speed via a frequency converter
drive motor with pendulum bearing
non-contact speed measurement at the engine shaft and force sensor for measuring the drive power
determination of the flow rate by using an electromagnetic flow rate sensor, or an orifice plate flow meter and a differential pressure measurement
manometer at the inlet and outlet of the centrifugal pump
digital displays for torque, speed, electrical power consumption and flow

III. Technical data
Centrifugal pump
max. flow rate: approx. 15m3/h
max. head: approx. 16m
Drive motor with variable speed
power output: 1,1kW
speed range: 0…2400min-1
Tank
volume: 96L

Measuring ranges
pressure: 1x -0,6…0bar, 1x 0…2,5bar
flow rate: 5…600L/min
speed: 0…5000min -1
torque: 0…10Nm
power consumption: 0…2,2kW
230V, 50Hz, 1 phase
230V, 60Hz, 1 phase
230V, 60Hz, 3 phases
Dimensions and weight
LxWxH: 2000x750x1480mm
Weight: approx. 215kg
