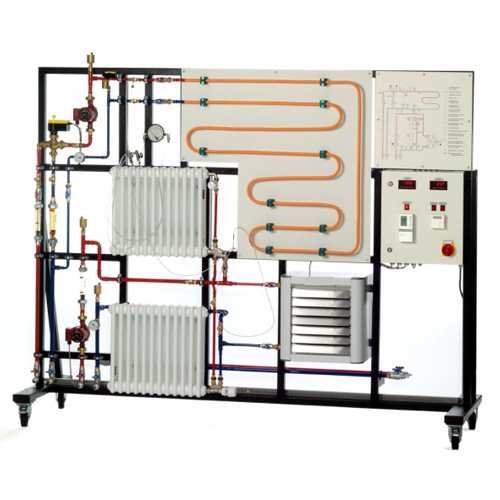

MR009 Comparison of different heating types Vocational Training Equipment Thermal Lab Equipment
Two independent heating circuits: floor heating or forced convector with fan and two radiators Features- setup of a complete domestic heating system together with hot water generator - 2 independent heating circuits:-- floor heating-- forced convector with fan, 2 radiators - control devices for both heating circuitsLearning objectives/experiments- design of a floor heating with controller and actuator-- temperature-led heating controller (outside temperature) with three-way mixing valve- design of a room heating system with radiators-- thermostatic valve-- one-pipe radiator valve- design of a room heating system with forced convector with temperature controller- function and design of commercially available heating technology components- measurement of differential pressures, temperatures and flow rates- energy calculation and evaluation of emitted heating capacity- reading and comprehension of symbols and process schematics Specification [1] together with hot water generator: setup of a complete domestic heatingsystem with 2 independent heating circuits [2] heating circuit 1 with floor heating, circulating pump, heating controller,and 3-way mixing valve [3] heating circuit 2 with forced convector with fan, 2 radiators and circulating pump [4] 1 radiator with thermostatic valve and 1 radiator with 1-pipe radiator valve [5] room temperature controller for fan of forced convector [6] measurement of flow rate and pressure [7] 8 measuring points for differential pressure and temperature [8] hot water connections with quick-release couplings
