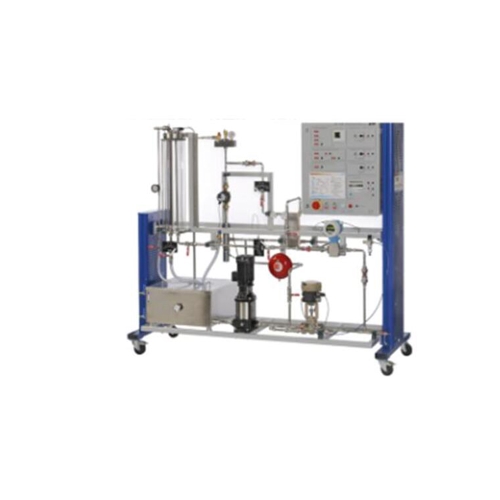

MR006 Didactic Station for Control Level Flow Pressure and Temperature Didactic Equipment Thermal Lab Equipment
Actuators, position valves, ball valve and warmer Application for teaching continuous, discontinuous and automatized processes 2 deposits Software Component installation: Montage frame with profifile panel and tubing system HMI Screen for process visualization Sensors: Capacitive, flfloater, ultrasonic, flow, pressure and temperature Sensors: 8 Electric tension 120 to 240V With polycarbonate deposit as liquid storage Compact station type Universal control It is be able to configure and program the PLC by software It is guarantee the learning of difference programming languages with controllers It is be able to make the projects in the HMI It is be able to operate the inversor of frequency by the digital and analog controls It is be able to make PID control in closed circuit with proportional parameter selection, integral and derivative. Adjust the value of the preset and control ON/OFF of temperature. Include user manual Include all connection cables It include at least 7 licenses for the sea of the HMI and PLC Include 1 place with at least 40 I/O digital and 7 I/O analog and MPI communication protocols, Profibus-DP and Profinet Include 1 remote unit of Profinet Include 1 expansion for the Hart input The HMI It is be with touchscreen color screen of at least 10.4” Include 2 tanks made in methacrylate of 20L Include a inversor of frequency for the activation of the pump Include 1 centrifuge pump of 0.5cv Include a warming resistor tubular type of 1000W Include temperature sensor PT100 Include 2 ultrasonic sensors of analog output Include 1 sensor of flow with Hart Include at least 4 sensors with capacitive level Include 1 pressure transducer
