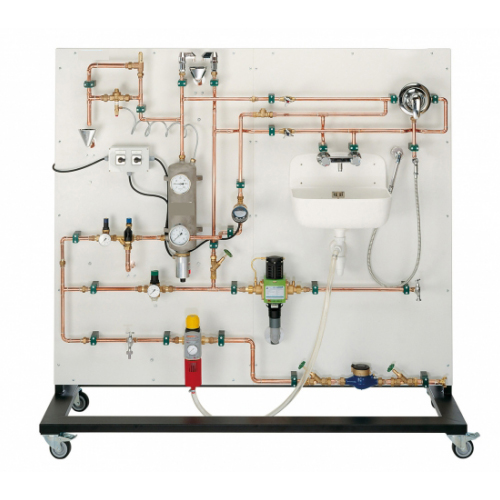

MR-HL 123 Drinking water installation demonstrator Didactic Equipment Heat Transfer Experiment Equipment
Drinking water installation in domestic setting with all common components Features - trainer with all components common in a drinking water installation- designed for training in the plumbing sectorLearning objectives/experiments- function and operation of components-- water meter-- pressure reducing valve with and without reversible flow filter-- backflow preventer / system separator-- system of safety devices-- pressure vessel with heater-- circulating pump-- thermal discharge safety device Specification [1] familiarisation with the most important components in a drinking water installation [2] system divided into cold water side, hot water side, drain system [3] cold water circuit with water meter, pressure reducing valve, angle-seat valve,system separator, outlets [4] hot water circuit with system of safety devices, pressure vessel with heater,pressure reducing valve, non-return valve, circulating pump with timer, outlets [5] drain system on rear of panel, drain pipe DN 40 with high temperature stability [6] single handle mixer, two handle mixer, shower sprinkler, pipe vents
