MR014 Hydronic Balancing Of Radiators Vocational Training Equipment Heat Transfer Demonstrational Equipment

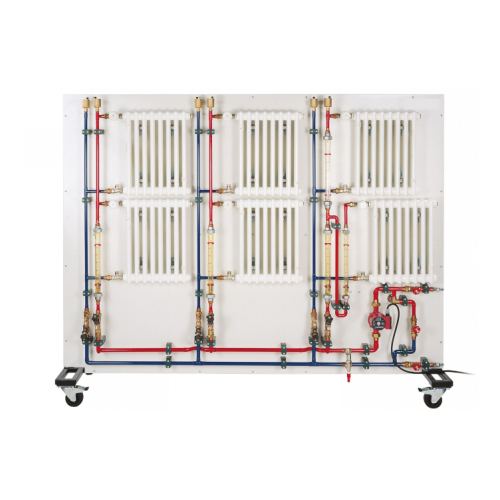

Hydronic balancing of a heating system: three heating subcircuits with radiators, thermostatic valves and circulation pump Features - balancing of a heating system - water connections made using quick-release couplings Learning objectives/experiments - variable pipework resistance - balancing valve - preset thermostatic valve - differential pressure relief valve Specification [1] trainer for heating and plumbing [2] 6 radiators with thermostatic valve, bleed valve and adjustable lockshield valve [3] expansion vessel, safety group according to DIN 4751, overflow valve [4] 5 rotameters [5] 1 surface thermometer for temperature measurement at radiator inlets and outlets [6] water connections using quick-release couplings, diameter inside 13mm, for optional connection to an external heating circuit
