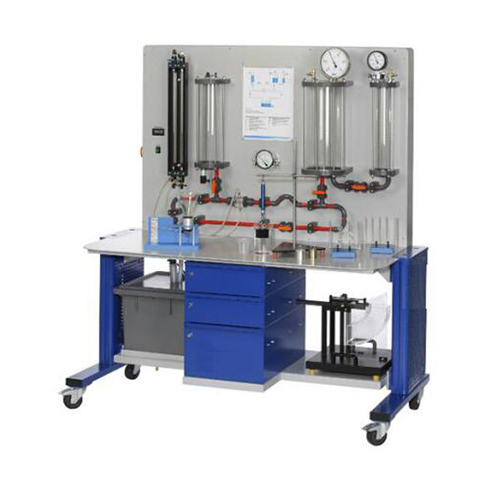

MR-HM115 Hydrostatic Trainer Educational Equipment Fluids Engineering Training Equipment Description • basic experiments in hydrostatics • wide range of experiments • closed water circuit with tankand pump Hydrostatics is the study of fluids atrest. Phenomena occurring as a resultof hydrostatic pressure are analysedand the force effect determined. Hydrostatic aspects play a crucial role in various areas of engineering, such as inplumbing and domestic engineering, inpump manufacturing, in aerospace andin shipping (buoyancy, load on the sidesof a ship). The MR-HM 115 trainer can be used to conduct experiments in the field of hydrostatics, such as ground pressure measurement or demonstrating Boyle’s law. Determining the centre of pressurecompletes the range of experiments. Furthermore, experimental units forstudying capillarity and buoyancy are included. The hydrostatic pressure andsurface tension are measured. Additionally, one experiment uses a Pitot tubeand a tube for static pressure to studythe pressure components in a flowingfluid. To make the functions and processesvisible, the tanks and the experimentalunits use a transparent design. Tanksand pipes are made entirely of plastic. Various pressure gauges are availablefor measuring pressure and differentialpressure of the liquid fluid, such as aPitot tube, tube for static pressure apressure sensor with digital display, twintube manometers or a differential pressure manometer. A diaphragm manometer and a Bourdon tube manometerindicate the pressure of the gaseous fluid. The trainer has its own air and watersupply. The closed water circuit includesa supply tank with submersible pump. Acompressor is included to generate positive and negative pressures for the experiments with air. Learning objectives/experiments • study of buoyancy on a variety of bodies • study of the density of liquids • hydrostatic pressure, Pascal’s law • communicating vessels • determination of the centre of pressure • study of surface tensions • demonstration of capillarity • Boyle’s law • study of static and dynamic pressurecomponent in flowing fluid • familiarisation with various methods ofpressure measurement Specification [1] comprehensive experimental introduction to hydrostatics [2] transparent tank for observing the processes [3] wide range of accessories included: compressorfor generating positive and negative pressures, bottom pressure apparatus, two areometers [4] 1 experimental unit each: measuring the buoyancyforce, investigation of the hydrostatic pressure in liquids, measuring the surface tension, communicating vessels, capillarity [5] Pitot tube for determining the total pressure andtube for static pressure [6] instruments: pressure sensor with digital display,differential pressure manometer, twin tube manometers, diaphragm manometer, Bourdon tubemanometer Technical data Pump • power consumption: 250W • max. flow rate: 9m3/h • max. head: 7,6m Compressor • power: 65W • pressure at inlet: 240mbar • pressure at outlet: 2bar 3 tanks • height: 500mm • Ø 100mm, Ø 133mm, Ø 200mm Supply tank for water: approx. 50L 2 areometers with different measuring ranges Measuring ranges • pressure: 2x -1…1,5bar • differential pressure: 0…500mmWC • differential pressure: 0…0,4bar • density: 1x 0,8…1g/cm3, 1x 1…1,2g/cm3 230V, 50Hz, 1 phase 230V, 60Hz, 1 phase; 120V, 60Hz, 1 phase UL/CSA optional LxWxH: 1760x820x1940mm Weight: approx. 270kg Scope of delivery 1 trainer 1 compressor 1 bottom pressure device 2 areometers 1 wedge-shaped tank 1 experimental unit each: surface tension, hydrostaticpressure in fluids, buoyancy force, capillarity, communicating vessels 1 set of instructional material
