1. Equipment introduction

Name: Losses in a Pipe System Fluids Engineering Experiment Equipment Didactic Equipment
Brand: Jinan Minrry Technology Equipment Co.Ltd.
SKU: MR-HM 150.11A
Availability: InStock
Rating: 5 (1 reviews)

During actual fluid flow, pressure losses occur due to friction and turbulence (eddy currents). Pressure losses occur in pipes, pipe elements, fittings and measuring devices (e.g. flow meters, speed meters). These pressure losses must be taken into account when designing piping systems.
MR-HM 150.11A allows the study of pressure losses in pipes, pipe elements and closing devices. In addition, the differential pressure method has also been proposed to measure flow.

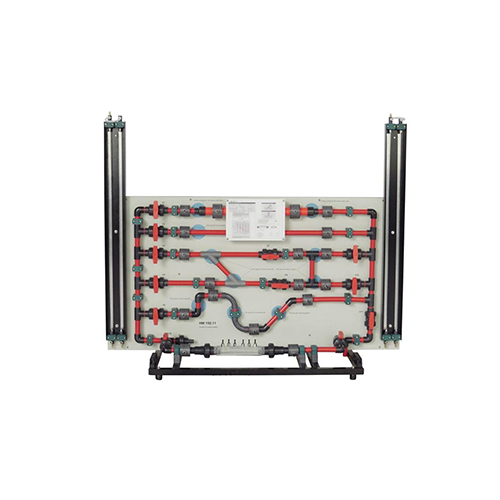

The experimental setup consists of six different pipe sections that can be closed individually. Pipe segments are equipped with pipe elements such as bends, bends and branches. Within a pipe section, different intercepting devices and measuring objects are installed to determine the flow rate. The measuring object is made of transparent material, allowing good observation of the internal structure. The pressure measuring points in the pipeline system are designed as annular chambers. This creates essentially interference-free pressure measurements.
These experiments measure pressure losses in pipes and pipe elements such as branches and elbows. The opening characteristics of the closing device are also recorded. Pressure is measured with a double-tube manometer.
The experimental setup can be placed easily and securely on the work surface of the MR-HM 150A basic module. The MR-HM 150A supplies water and measures the flow rate. Alternatively, the experimental setup can be operated from the laboratory water supply.

2. Technical data

Overall parameters of the device:
Dimensions: 1520mm (length) X 640mm (width) X 1200mm (height)
Weight: about 35 Kg
Parameters of double tube pressure gauge:
2 double pressure gauges for differential pressure measurement
Measuring range:
0...0,1 bar
0...1000mmwc
Experimental accessories parameters:
Angle seat valve DN 15
Gate valve DN 15 orifice Ø 18.5 mm
Nozzle diameter 14 mm
Venturi Ø 28.4 - 14.0 mm

3.Equipment components

No	Name
1	Vent
2	Double tube pressure gauge
3	Sudden contraction of pipeline
4	Study friction loss conditions
5	Right angle bend pressure loss condition
6	Curve pressure loss conditions
7	flow control valve
8	Drain valve
9	Sudden pipeline expansion conditions
10	Pipeline tributary conditions
11	Hidden water inlet
12	Venturi flow meter

4. Experiment list

Experiment 1 Studying Flow and Friction in Pipes
Experiment 2 Pressure losses and resistance coefficients in pipes, pipe elements and fittings
Experiment 3: Pressure loss and resistance coefficient of two types of valves in pipelines
Experiment 4 Opening characteristics of angle seat valve and gate valve
Experiment 5 Familiar with various objects for measuring flow: Venturi nozzles and orifice flow meters and measuring nozzles
