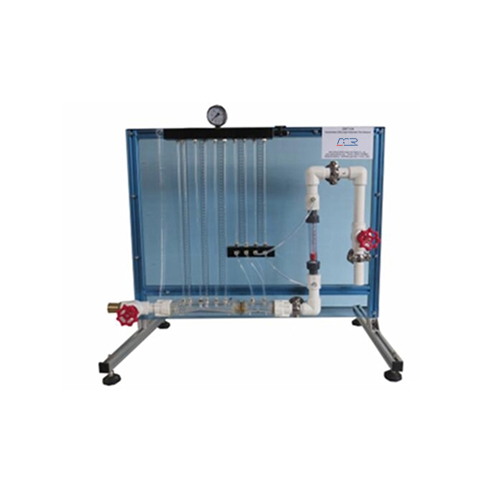

MR-HM 150.13 Methods of Flow Measurement Educational Equipment Hydrodynamics Lab equipment Description • different methods of flow ratemeasurement • visualisation of the pressure distribution in Venturi nozzle ormeasuring orifice/measuringnozzle Measuring the flow rate is an importantaspect in measurement technology. There are several ways to measure theflow of fluids in pipes. With HM 150.13 students can familiarise themselves with various methods formeasuring flow in the pipe system andapply them in practice. The experimental unit contains differentmeasuring instruments to determinethe flow rate. These instruments are designed with transparent cases in orderto visualise how they operate and function. The methods include, for example,rotameters, a Venturi nozzle or orificeplate flow meter and measuring nozzle. Six tube manometers is used in order todetermine the pressure distribution inthe Venturi nozzle or the orifice plateflow meter and measuring nozzle. Thetotal pressure is measured by a Pitottube. The experimental unit is positionedeasily and securely on the work surfaceof the HM 150 base module. The wateris supplied and the flow rate measuredby HM 150. Alternatively, the experimental unit can be operated by thelaboratory supply. Learning objectives/experiments • flow measurement with · orifice plate flow meter and measuring nozzle · Venturi nozzle · rotameter • pressure measurement with Pitot tube • comparison of different instrumentsfor flow measurement • determining the corresponding flowcoefficients • calibrating measuring instruments Specification [1] different methods of flow rate measurement [2] measuring instruments: orifice plate flowmeter/measuring nozzle, Venturi nozzle and rotameter [3] 6 tube manometers to determine the pressure distribution in Venturi nozzle, orifice plate flowmeterand measuring nozzle [4] measurement of the total pressure with Pitot tube [5] flow rate determined by HM 150 base module [6] water supply via HM 150 or via laboratory supply Technical data Venturi nozzle: A=84…338mm2 • angle at the inlet: 10,5° • angle at the outlet: 4° Orifice plate flow meter: diameter=14mm Measuring nozzle: diameter=18,5mm Rotameter: max. 1700L/h 6 tube manometers: 390mmWC LxWxH: 1100x672x900mm Weight: approx. 30kg Required for operation HM 150 (closed water circuit) or water connection,drain Scope of delivery 1 experimental unit 1 set of measuring instruments 1 set of hoses 1 set of tools 1 set of instructional material
