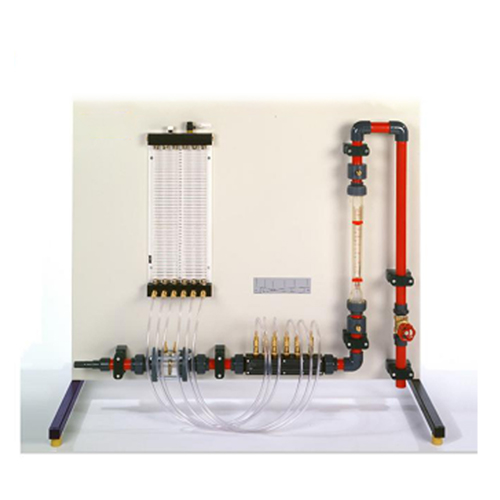

MR1028 Methods Of Flow Measurement Apparatus Didactic Equipment Vocational Training Equipment

Learning Objectives / Experiments
flow measurement with
orifice plate flow meter and measuring nozzle
Venturi nozzle
rotameter
pressure measurement with Pitot tube
comparison of different instruments for flow measurement
determining the corresponding flow coefficients
calibrating measuring instruments


Specification
[1] different methods of flow rate measurement
[2] measuring instruments: orifice plate flow meter/measuring nozzle, Venturi nozzle and rotameter
[3] 6 tube manometers to determine the pressure distribution in Venturi nozzle, orifice plate flow meter and measuring nozzle
[4] measurement of the total pressure with Pitot tube
[5] flow rate determined by base module
[6] water supply via laboratory supply


Technical Data
Venturi nozzle: A=84...338mm²
angle at the inlet: 10,5°
angle at the outlet: 4°
Orifice plate flow meter: diameter=14mm
Measuring nozzle: diameter=18,5mm
Rotameter: max. 1700L/h
6 tube manometers: 390mmWC
Dimensions and Weight
LxWxH: 1100x672x900mm
Weight: approx. 30kg
Required for Operation
(closed water circuit) or water connection, drain
