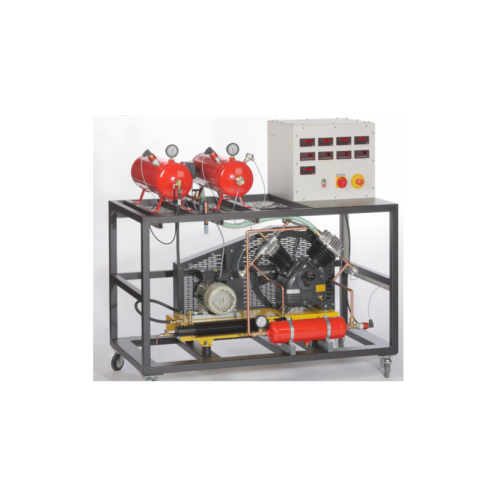

MR1038 Radial Compressor Training System Didactic Equipment Hydrodynamics Laboratory equipment
The System Should Cover the Following Training Objectives: Familiarization with characteristic variables of a radial compressor Recording of the compressor curve for both stages Influence of the rotor speed on the pressure Influence of the rotor speed on the flow rate Study of distribution of stage pressure ratios Influence of compression on the temperature increase Determination of hydraulic power output and efficiencies Minimum Technical Specifications Required (like or better than): Two-stage radial compressor with power consumption: 1KW, maximum volumetric flow rate: 160m3/h and maximum pressure difference: 220mbar Transparent intake pipe with inner diameter: 42mm Transparent delivery pipe Throttle valve Air inlet is provided with protecting plate Integrated microprocessor-based instrumentation Should require no additional devices with error-prone wiring 2x handles Differential pressure measurement range for both stages: 0 to 350mbar Flow rate measurement range: 0 to 120m3/h Temperature measurement range: 2x 0 to 100°C Compressor speed measurement range: 0 to 20900 rpm Electrical power consumption: 0 to 1000W Data acquisition unit with software with control functions USB interface PC Core i7, DVD+/-RW, 8GB RAM, 1TB Hard Disk Drive, Optical Mouse, Multimedia Keyboard, Monitor (21") LED
