1. Equipment Introduction

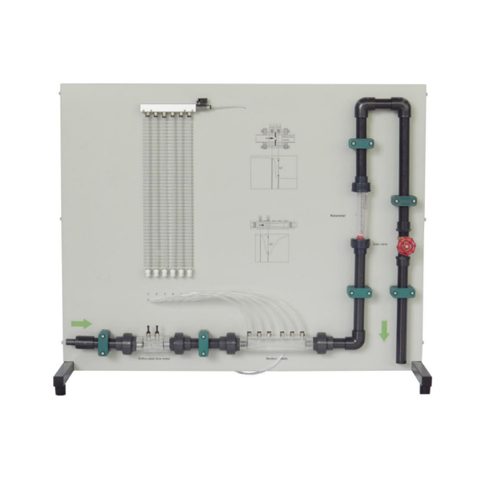

Name: Venturimeter, Orifice Plate, Rotameter Flow Measure Vocational Training Equipment Hydrodynamics Laboratory equipment
Brand: Jinan Minrry Technology Equipment Co.Ltd.
SKU: MR3107
Availability: InStock
Rating: 5 (1 reviews)

1.1 Overview

In hydraulic engineering, flow rate is an important parameter. Flow rate refers to the amount of fluid flowing through the effective cross-section of a closed pipe or open channel per unit time, also known as instantaneous flow rate. When the amount of fluid is expressed in volume, it is called volume flow rate; when the amount of fluid is expressed in mass, it is called mass flow rate. The volume of fluid flowing through a certain section of a pipe per unit time is called the volume flow rate of the cross-section. It is referred to as flow rate and is generally represented by Q. How to measure the flow rate in a pipeline is a question worth exploring. Measuring flow rate requires the use of a flow meter. Therefore, we need to understand and recognize the measurement principles and usage methods of various flow meters.
MR3107 Venturi meter, orifice plate, rotor flowmeter product is a device used to demonstrate the principles and usage methods of various flow meters. The device mainly includes three different types of flow meters and a multi-tube differential pressure gauge.

1.2 Features

(1) The structure of the experimental device uses more sturdy and corrosion-resistant materials to ensure that the device is sturdy and durable.
(2) The experimental equipment adopts a modular design. The advantages of this design can help users understand the experimental principles and methods more intuitively.
(3) The experimental equipment provides a visual experimental module, which can help users better observe the experimental phenomena.
(4) The experimental equipment provides a variety of different types of experimental modules, which greatly enriches the types of experiments that can be explored.

2. Technical parameters

Dimensions:1.18mX0.53m X1.04m
Weight:46KGS
Working conditions: Ambient temperature -10℃～+40℃; relative humidity < 85% (25℃)

3. Component list and detailed introduction

3.1 Main part

No.	Name
1	Exhaust valve switch
2	Six-tube differential pressure gauge
3	Orifice flow meter
4	Experimental frame
5	Measuring hole
6	Rotor flow meter
7	Flow Control Valve
8	Venturi flow meter

3.2 Equipment Configuration List

No.	Name	Qty
Component 1	Venturi flow meter	1
Component 2	Rotor flow meter	1
Component 3	Orifice flow meter	1
Component 4	Multi-tube differential pressure gauge	1
Component 5	Flow Control Valve	1

4. Experiment list

Experiment 1 demonstrates the pipeline operation experiment of MR3107Venturi meter, orifice plate, and rotor flowmeter
Experiment 2 demonstrates the experiment of measuring pipeline flow using orifice plate flowmeter
Experiment 3 demonstrates the experiment of measuring pipeline flow using Venturi flowmeter
Experiment 4 demonstrates the experiment of measuring pipeline flow using rotor flowmeter
Experiment 5 demonstrates the experiment of studying pressure distribution using Venturi flowmeter
Experiment 6 demonstrates the experiment of studying flow coefficient using orifice plate flowmeter
Experiment 7 demonstrates the experiment of calibrating other flowmeters using rotor flowmeter
