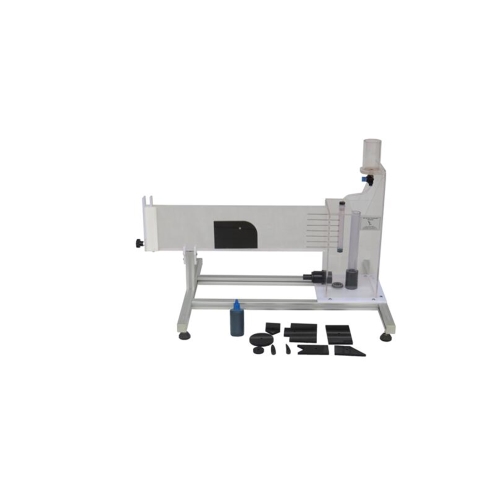

MR-HM 150.10 Visualisation of streamlines Educational Equipment Fluids Engineering Training Equipment Description • visualisation of streamlines • ink as a contrast medium • various models included:drag bodies and changes incross-section • sources and sinks, individually orin combination
The laminar, two-dimensional flow inMR-HM 150.10 is a good approximation ofthe flow of ideal fluids: the potential flow. MR-HM 150.10 can be used to visualizestreamline fields for flows around dragbodies and flow through changes incross-section. The streamlines are displayed in colour by injecting a contrastmedium (ink). Sources and sinks aregenerated via four water connections inthe bottom plate. The streamlines canbe clearly observed through the glassplate during flow around and flowthrough. The water flow rate and the quantity ofcontrast medium injected can be adjusted by valves. The water connections arealso activated by valves and can be combined as required. Individual models canbe cut out of a rubber plate that is included. The experimental unit is positioned easily and securely on the work surface ofthe MR-HM 150 base module. The water issupplied by MR-HM 150. Alternatively, theexperimental unit can be operated bythe laboratory supply.
Learning objectives/experiments • visualisation of streamlines in · flow around drag bodies · flow through changes in cross-section • influence of sources and sinks
Specification [1] visualisation of streamlines [2] water as flowing medium and ink as contrast medium [3] upper glass plate, hinged for interchanging models [4] bottom plate with water connections for generatingsources/sinks [5] sources/sinks can be combined as required [6] different drag bodies and changes in cross-sectionincluded [7] rubber plate for creating your own models included [8] flow velocity, water supply and water drain insources/sinks as well as dosage of the contrastmedium can be adjusted by using valves [9] water supply using HM 150 base module or vialaboratory supply
Technical data Flow chamber contains two plates • distance between the plates: 2mm • upper plate made of glass • bottom glass plate with four water connections forsources/sinks • size experiment area: LxW: 400x280mm 10 drag bodies and changes in cross-section Rubber plate for your own models • LxH: 300x400mm • thickness: 2mm Injection of the contrast medium (ink) • 15 holes
Tank for contrast medium: 500mL LxWxH: 640x520x520mm Weight: approx. 24kg Required for operation MR-HM 150 (closed water circuit) or water connection,drain Scope of delivery 1 experimental unit 1 set of models 1 rubber plate 1 ink (2x 30mL) 1 set of hoses 1 set of instructional material
