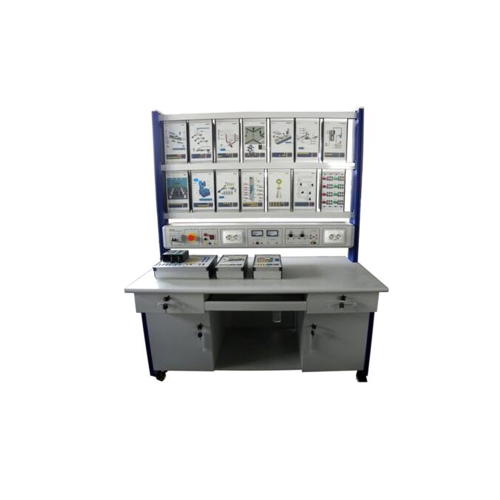

MR286E Banch Study A. P. I With Software Of Communication And Supervision Vocational Training Equipment Electrical Workbench
1 Product overview
1.1 Profile
PLC is the modern technology in industrial field, this trainer include Siemens S7-300 PLC training modules with digital and analogue expands, together with Ethernet expanders, power box, workbench, training student’s hand on practice ability, programming ability. It is suitable for higher vocational colleges, higher technical, secondary vocational school and technical school related professional teaching and skill training evaluation.
1.2 Character
(1)Training workbench use industrial aluminum column structure frame, it include metering box and power box to test and measure technical parameter, the training circuit and components are build-in structure in hanging module, the modular structure enables students to combine experiment module flexible, it is easy to use and it is not easy to be broken.
(2) Equipped with motors, students can make combination, and finish many training contents.
(3) Training workbench has high safety system.
(4) 4 Wheel at the bottom of workbench, 2 with locker, it is easy to move and fix.
(5) With cabinet at bottom, with locker in cabinet, students can put tools inside.
(6) The structure is flexible, can be disassembly and assembly easily.
2 Technical parameter
(1) Input power: single phase, three wires, 220V±10% 50Hz
(2) Dimension: 1780mm×700mm×1800mm
(3) Whole capacity:＜2.0KVA
(4) Weight: ＜200kg
(5) Work environment:<85% humidity
3 Product consist of
3.1 Power control panel
Power control panel use aluminum structure metal panel, all close type boxes structure
3.2 Training workbench
Training workbench use aluminum structure. There are universal 4 wheels at the bottom of workbench, there are 2 breakers on wheel. The trainer can be moved or stop convenient . The workbench panel thick is 25mm high density substrate , there is high temperature high pressure anti-fire treatment process. It equip with three guide rail type drawer, 2 push and plug cabinet. The structure is sound and reliable, outlook is beautiful.
3.3 Power control panel
(1)Single phase, three wire power input, it has been tested by leakage breaker control, it has emergency stop button, you can cut off electricity when emergency.
(2) The voltage meter and current meter indicate output, it is equipped with 0-10V, and 4-20mA signal generator.
(3) It equipped with indicator, Europe power plug output, safety output sockets.
(4)Inner AC 220V, with short circuit protection function.
3.4 Component included
This module meet students various experiment purpose, each module takes standard module, the reference photo for the modules
3.5 Experiment list
(1) Sky tower light simulation training experiment
(2) Automatic feeding loading simulation training experiment
(3) Water tower water level simulation training experiment
(4) Responder simulation training experiment
(5) Electrical motor control simulation training experiment
