MR285E Synchronous Motor And Generator Trainer Educational Equipment Electrical Machine
1 Product overview
1.1 Profile
This trainer include various types of inductive motors and control components, through experiments students can be familiar with AC motor features, master its control principles and control mode, it will cultivate students’ technical skills and knowledge. The trainer is suitable for vocational school students, technical
schools students, colleges students who major in electrical technology, electronics technology, mechatronics technology etc.
1.2 Character
(1)Training workbench use aluminum column structure frame, it include meter box and power box to test and measure technical parameter, it is easy to use and it is not easy to be broken.
(2) Equipped with motors, students can make combination, and finish many training contents.
(3) Training workbench has high safety system.
2 Technical parameter
(1) Input power: single phase, three wires, 380V±10% 50Hz
(2) Dimension: 1600mm×800mm×1300mm
(3) Whole capacity:＜2.0KVA
(4) Weight: ＜220kg
(5) Work environment:
Environment temperature: -10℃～+40℃
Relative humidity: ＜85%(25℃)
3 Product consist of
3.1 Power control panel
Power control panel use aluminum structure metal panel, all close typeboxes structure

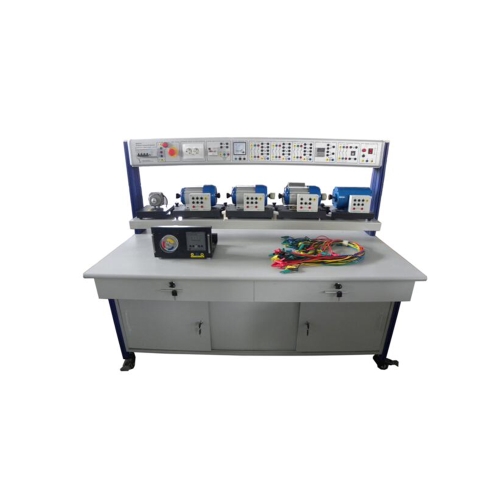

3.2 Training workbench
Training workbench use aluminum structure. There are universal 4 wheels at the bottom of workbench, there are 2 breakers on wheel. The trainer can be moved or stop convenient . The workbench panel thick is 25mm high density substrate , there is high temperature high pressure anti-fire treatment process. It equip with three guide rail type drawer, 2 push and plug cabinet. The structure is sound and reliable, outlook is beautiful.
3.3 Power control panel
(1)Three phases, five wires power input, it has been tested by leakagebreaker control, it has emergency stop button, you can cut off electricitywhen emergency.
(2)Equipment with power indicator, Europe socket output plug, 4mm safety power output sockets.
(3)Equipment with AC motor protection switch, inner with AC power supply, with short circuit protection function.
3.4 Component included
(1)Single-phase capacitor motor(With Centrifugal switch)
(2)Single phase mask pole motor
(3)Three-phase asynchronous double speed motor
(4)Three phase squirrel-cage asynchronous motor
(5)Three-phase winding type slip ring motors
(6)Three-phase ac permanent magnet synchronous motor
4 Training content
4.1 Single phase capacitor electro experiment
(1) Single phase capacitor static test
(2) Single phase capacitor principle, feature and function test
(3) Single phase capacitor start function control
(4) Single phase capacitor double value capacitor switching control
4.2 Single phase mask pole motor experiment
(1) Single phase mask pole motor static test
(2) Single phase mask pole motor principle, feature and function test
(3) Single phase mask pole motor start function control
